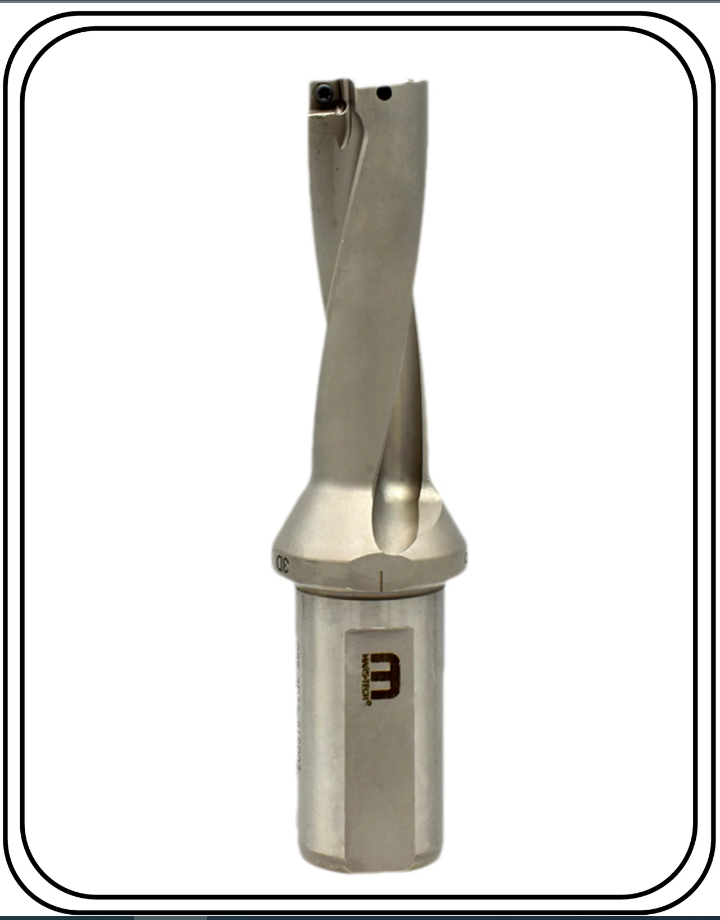

Design of U Drill CNC Machine Tools
U-drill CNC machine tools have a unique design that enables them to drill large-diameter holes efficiently. The cutting edge of the drill is shaped like the letter "U", which gives it its name. The drill's cutting edge has two separate angles, a lead angle, and a relief angle. The lead angle controls the direction of the chip flow, while the relief angle controls the size of the chip that is produced.
U-drill CNC machine tools are available in various sizes and configurations. The shank of the drill is usually designed to fit into a collet or a chuck, which is mounted onto a CNC machine tool. The drill's body is usually made from high-speed steel or carbide material, which provides high wear resistance and durability.
The functionality of U Drill CNC Machine Tools
U-drill CNC machine tools are designed to produce large-diameter holes in a single operation. The drilling process involves the cutting edge of the drill penetrating the workpiece, removing material from the hole, and producing chips. The chips are then evacuated from the hole through the flute of the drill.
The design of the U drill CNC machine tool ensures that the drill's cutting edge is in contact with the workpiece for the entire duration of the drilling operation. This design ensures that the hole produced is straight and accurate with minimal burrs or surface finish imperfections. U-drill CNC machine tools are also capable of drilling deeper holes than traditional twist drills due to their unique design.
Applications of U Drill CNC Machine Tools
U drill CNC machine tools are used in various manufacturing and metalworking applications. They are commonly used in the production of aerospace components, automotive components, and medical equipment. U drills are also used in the oil and gas industry for drilling holes in pipes and other materials.
One of the main advantages of using U drill CNC machine tools is their ability to produce holes with high accuracy and minimal surface finish imperfections. This is essential for applications that require high precision and accuracy, such as in the aerospace and medical industries. U-drill CNC machine tools are also faster and more efficient than traditional twist drills, reducing cycle times and increasing productivity.
Conclusion
U-drill CNC machine tools are an essential part of modern manufacturing and metalworking industries. They are designed to produce large-diameter holes with high precision and accuracy. U drills are faster and more efficient than traditional twist drills, making them an ideal choice for deep-hole drilling applications. The design of U-drill CNC machine tools ensures that they produce minimal burrs and surface finish imperfections, making them ideal for applications that require high precision and accuracy. U drill CNC machine tools are used in various industries, including aerospace, automotive, and medical industries, and are essential tools for modern manufacturing.
